Lakshmi & Co. Group of Companies
  • Coimbatore, India
  • Business Type: Brick Machine Manufacturer
  • Contact Person: Mr. K. Nanda Gopal (CEO)
  • Address: No.30, Amman Kovil Street, Venkitapuram, G. C. T.Post, Coimbatore.
For more details Send Us Your Enquiry Now!

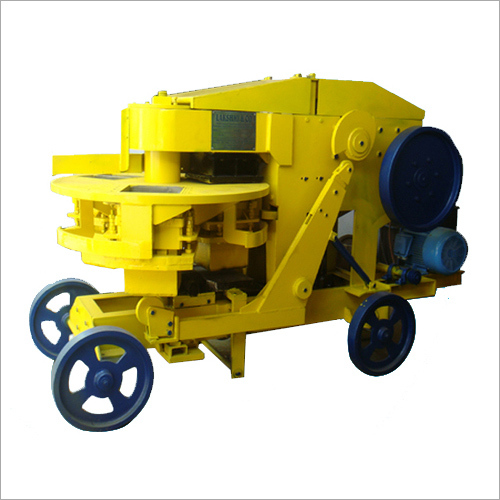

clay brick making machine

Capacity 1000 - 2000 bricks / hour
Power 10 H. P.
Brick Size 230 x 110 x 75 mm
Max. Size 300 x 400 x 150 mm
System Mechanical, Automatic, Rotary Table, Three Stationed
Table Rotation Calm Gear (Automatic) Conveyor (or) Manual
Brick Manual Removal
Raw Material FlyAsh FlyAsh, Soil, Sand, Lime, Iron, LimeSludge, Oxide, Quarry Waste etc...
Raw Material Clay Clay
Weight 2500 Kgs. (Approximately)

Specifications:

Power Production Per Hour Pressure Raw Material Per Stroke Maximum Size Brick   Operators
5Hp 500 Bricks 10 Tons (approx) Wet Semi Dry( Moisture 10% to 20 %) 1 Brick 230 mm X 110 mm X 75 mm Two Unskilled
7.5Hp 1000 Bricks 30 Tons (approx) Wet Semi Dry( Moisture 10% to 20 %) 2 Bricks 230 mm X 110 mm X 75 mm Two Unskilled
10 Hp 500 Blocks 40 Tons (approx) Wet Semi Dry( Moisture 10% to 20 %) 2 Bricks  230 mm X 110 mm X 100 mm 230 mm X 230 mm X 100 mm Two Unskilled
15 Hp 500 Blocks 40 Tons (approx) Wet Semi Dry( Moisture 10% to 20 %) 2 Bricks 300 mm X 150 mm 300 mm X 300 mm X 150 mm Two Unskilled

Machineries Required For Fly Ash Bricks & Blocks Manufacturers:

Brick Making Machine Pan Mixture Belt Conveyor Pallets Wheel Borrows Hydraulic Manual Pallet Trolley
1 No 1 No 25 Feet  Length 200 No’s minimum 4 No’s  2 No’s

Machineries Required For Clay Brick Manufacturers:

Brick Making Machine Mud dust Machine (optional) Tractor Rottavator Pug mill Machine (optional) Pan Mixture(optional)
1 No (Any model Rotary  Table ) 1 No 1 No 1 No

    Machineries Required For Stabilized Soil Brick & Block  Manufacturers:

    Brick Making Machine Pan Mixture Belt Conveyor Wheel Borrows Hydraulic Manual Pallet Trolley
    1 No 1 No 25 Feet  Length 4 No’s  4 No’s

    Machineries Required For Desert  Soil Brick & Block  Manufacturers:

    Brick Making Machine Pan Mixture Belt Conveyor Wheel Borrows Hydraulic Manual Pallet Trolley
    1 No 1 No 25 Feet  Length 4 No’s  4 No’s
